Overview

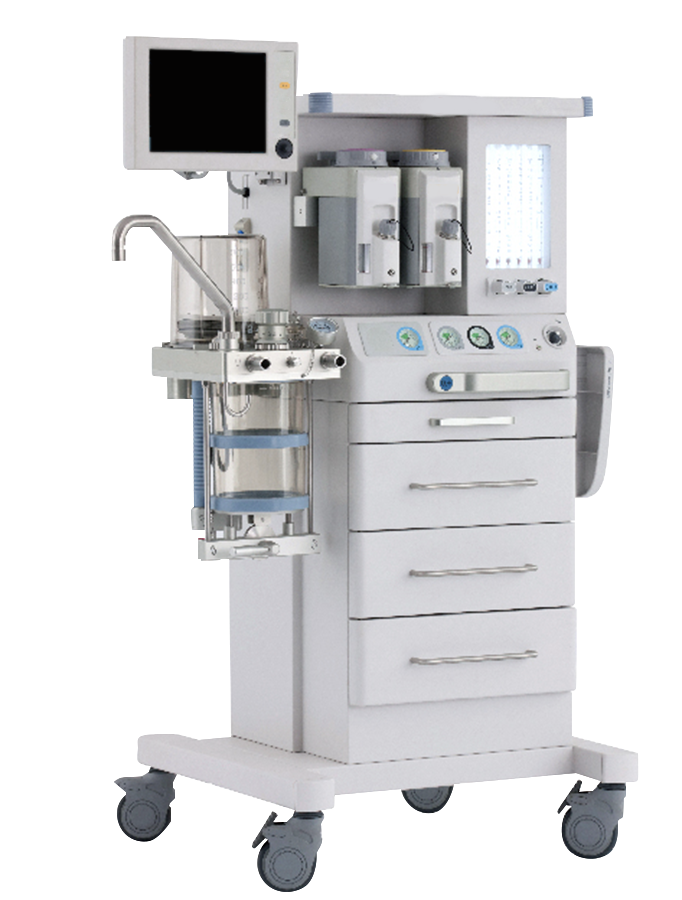

Anaesthesia System KAM-B100 is fully featured high-end general anaesthesia workstation equipped with wide screen display for respiratory trends, and other vital parameters. PCV and SIMV + PS modes ensure flexible ventilation. Comprehensive monitoring and intelligent gas flush and cut-off system for critical events improves patient safety.

Specifications :

Ventilation Modes	IPPV, PCV, SIMV + PS, PS and Manual
Tidal Volume	20 ml to 1500 ml
Pressure (Inspiratory)	5 cmH2O – 70 cmH2O
Pressure (Support)	3 cmH2O – 50 cmH2O
Electronic PEEP	Off / 3 cmH2O – 30 cmH2O
I: E Ratio	4:1 to 1:8
Display	10.4” TFT Colour
Drive	Pneumatically driven and electronically controlled
Pressure Trend	Paw, Ppeak, Pplat, Pmean, PEEP
Volume Monitoring	MV, VT, Freq
Graph Display	P-T, F-T, P-V, F-V
Ventilation Gas (Optional CO2, AG, MAC)	FiO2
Operational modes	Closed, Semi-closed, Semi-open
Gas Supply	O2 , Air, N2O
Ventilator Pressure at Inlet	280 kPa ~ 600 kPa
Flowmeter	O2 : 0 ~ 10L/min Air : 0 ~ 12L/min N2O : 0 ~ 10L/min Auxiliary O2 : 0 ~ 12L/min
Vaporizer	Supports 2 vaporizers
CO2 Absorption Tank	3 L Autoclavable
Vaporizer Filling methods	Pour Fill Key Fill Quick-Fil
Anaesthetic Agents	Halothane, Enflurane, Isoflurane, Sevoflurane
APL Range	Spontaneous breathing (SP) -70 cmH2O
T-slope	0 ~ 2s
Plateau (Inspiratory)	Off / 5% – 60% Ti
Trigger Sensitivity	1 – 15 L/min
Alarm	High/Low Airway Pressure, Sustained Airway Pressure, High/Low Minute Volume, High/Low FiO2, High Breath Rate, O2 supply failure, Power failure, Apnea alarm, Mute : 110s
Power Supply	100 V ~ 240 V 50/60 Hz
Battery	24 V 4Ah ; 120 min
Dimensions	760 × 1300 × 630mm
Weight	100 Kgs



Features :

• Integrated 10.4” Monitor screen
• Ventilation modes: IPPV, PCV, SIMV + PS, PS and Manual
• CO₂ Absorption: 3 Litre Autoclavable Tank
• Flowmeter: minimum 25% O₂/N₂O mixture concentration
• Double Vaporizer with Selectatec interlock
• Comprehensive safety alarms with mute
• Suitable for central or non-central OT
• Suitable for Adult, Pediatric and Infant
• Monitoring of O₂, CO₂ and anaesthetics (optional)
• Heated Breathing system (optional)

Applications :

Used in Surgical or Gynaecological departments to administer appropriate anaesthesia dosage at a specified rate to ensure effective sedation during surgeries and other invasive diagnostic or interventional procedures.
