Overview

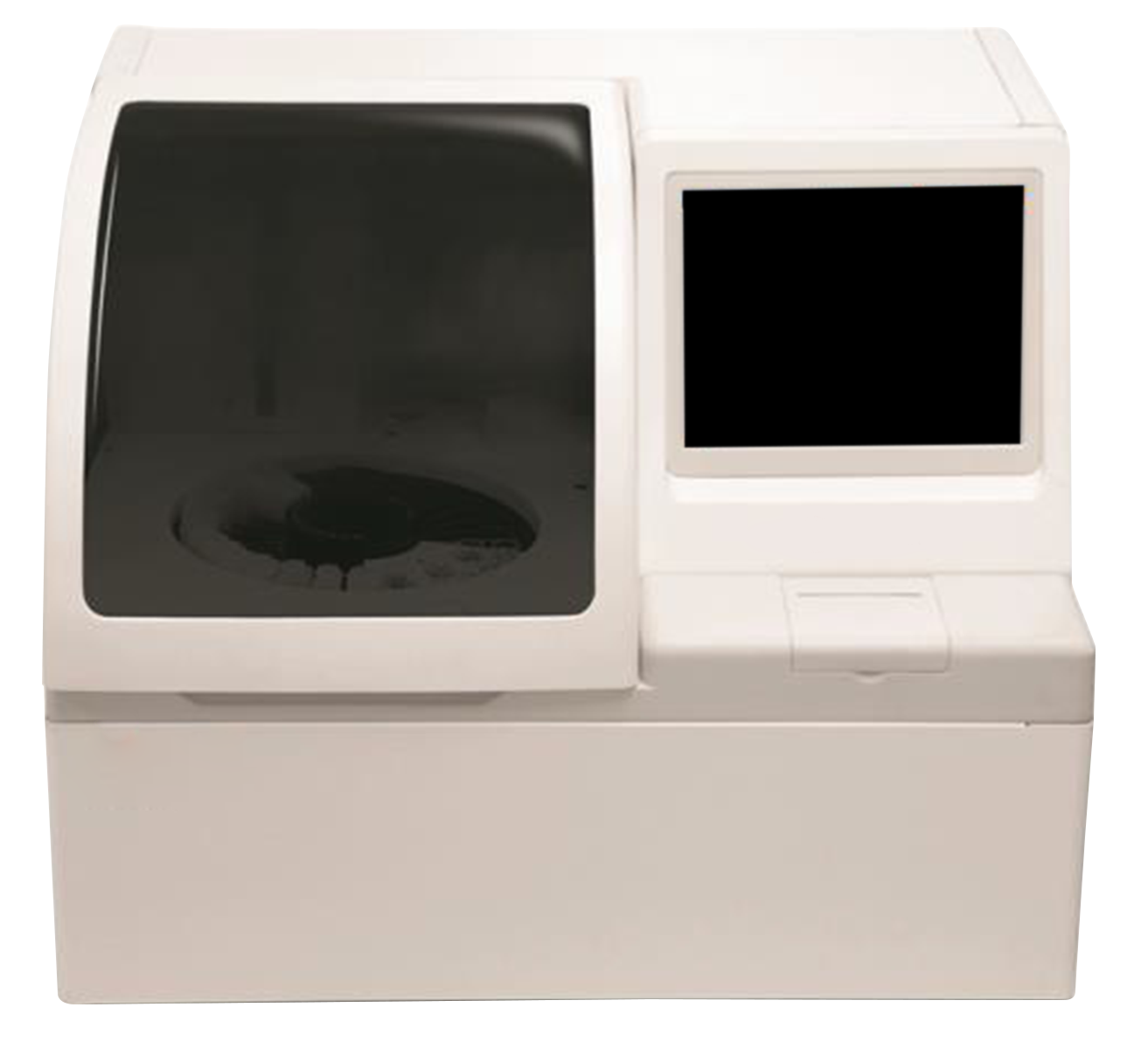

Chemistry Analyser KCA-A202 is a fully automated benchtop clinical chemistry analyzer. System incorporates pre-defined analysis programs which simplifies test functionality. Built-in reagent cooling and pre-heating facility eliminates need to refrigerate or heat sample which saves time. Touch screen display combined with STAT and routine testing allows versatile applicability.

Specifications :

Type	Fully Automatic Random Access system
Throughput	120 tests/hour
Assay Modules	Up to 26 Assays
Sample slots	9
Sample volume	3 µL – 45 µL, (0.5 µL step adjustability)
Reagent slots	26
Reagent volume	R1 : 180 µL – 450 µL, (1 µL step adjustability) R2 : 180 µL – 450 µL, (1 µL step adjustability)
Reaction slots	90 cuvettes, 10 cuvettes/strips
Cuvette (Optical length)	5 mm
Reaction volume	180 µL – 500 µL
Reaction temperature	(37° ± 0.4°) C
Probe Handling	Pre-heat, Collision protection, Liquid-level detection, Inventory checking, Automatic inner and outer probe washing
Lamp	Halogen bulb
Absorbance range	(0 Abs – 3.500 Abs) ± 1 %
Wavelength	340 nm – 700 nm
Resolution	0.0001 Abs
Temperature	10°C - 35°C
Humidity	35% – 80%
Reagent refrigeration	4°C - 15°C
Water Consumption	1.5 L/hr
Power Supply	100 V – 240 V ; 50/60 Hz
Dimension	583 x 453 x 530 cm
Weight	70 Kgs



Features :

• Throughput : 120 photometric tests/hour
• Analytical modes : End-point/Two-point/Kinetic
• Ergonomic operational software
• Micro-volume sample analysis
• Reagent pre-heat and refrigeration

Applications :

Used in small to medium sized pathological diagnostic laboratories with wide range of applications including determination of the concentration of enzymes, substrates, electrolytes, specific proteins, drugs of abuse, and therapeutic drugs in samples for diagnosis of toxicological effect on renal, cardiac, and liver function.
