Overview

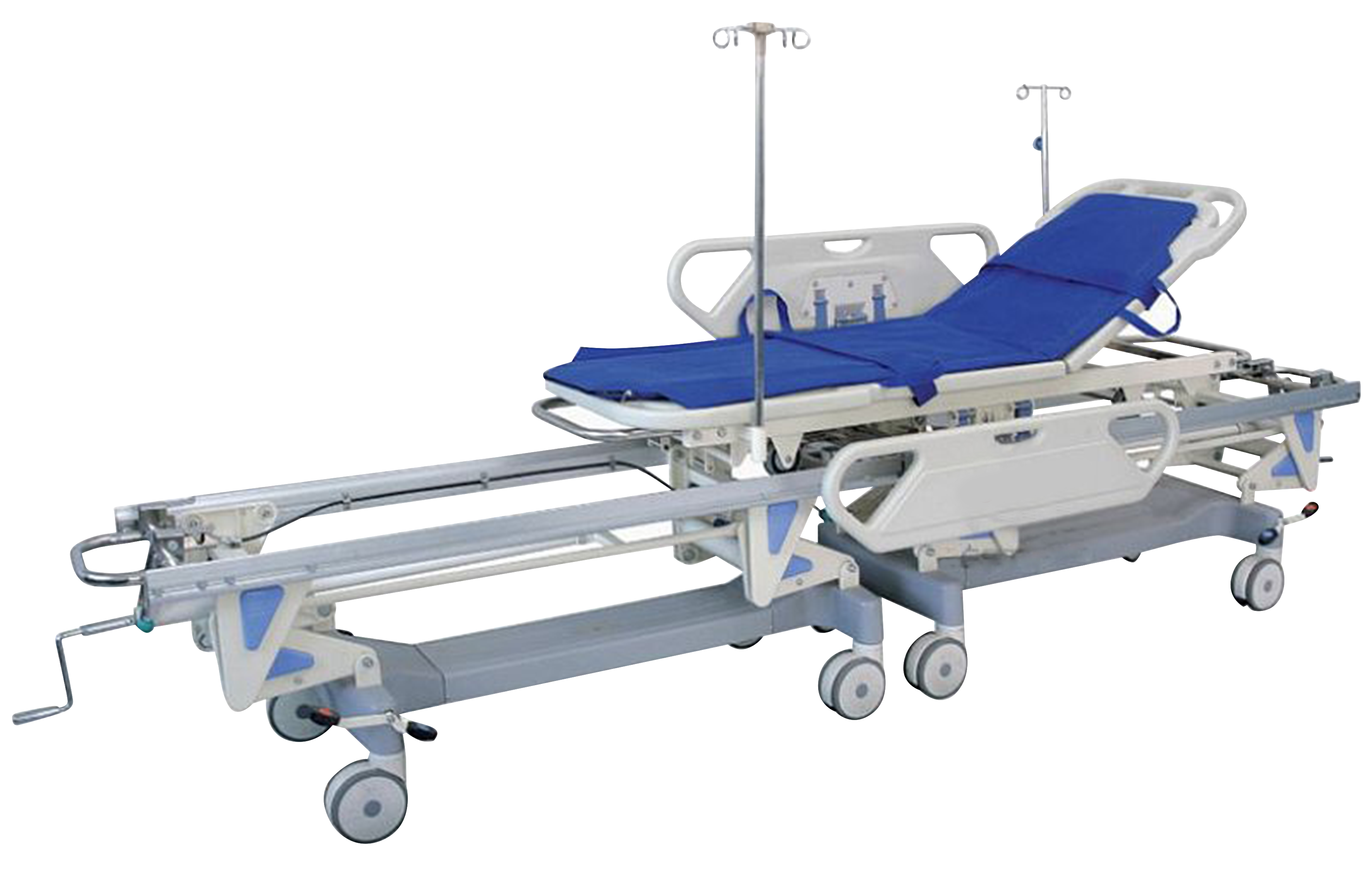

KCS-A100 is emergency connecting trolley for operating room. Stretchers can be moved for easy transport of patient from outside to inside the operating room when two trolleys are at the same level. Stretcher can be locked automatically with the trolley. Two trolleys are joined together but up and down separately. Backrest function is controlled by spring.

Specifications :

Backrest upward angle	75 °
Side rails	ABS material
Bottom platform	Polypropylene
Variable height	640 to 970mm
Mattress thickness	80 mm
Weight capacity	150 Kgs
Caster diameter	150 mm
Dimension	3650 × 640 × 640-970 mm



Features :

• Aluminum alloy trolley structure
• Aluminum alloy railway connects 2 stretchers
• PP bottom platform
• Two ABS side rails
• Central locking function
• IV pole, PU (polyurethane) cover water proof mattress

Applications :

Used in hospital operating rooms to transfer patient from table to anesthesia.
