Overview

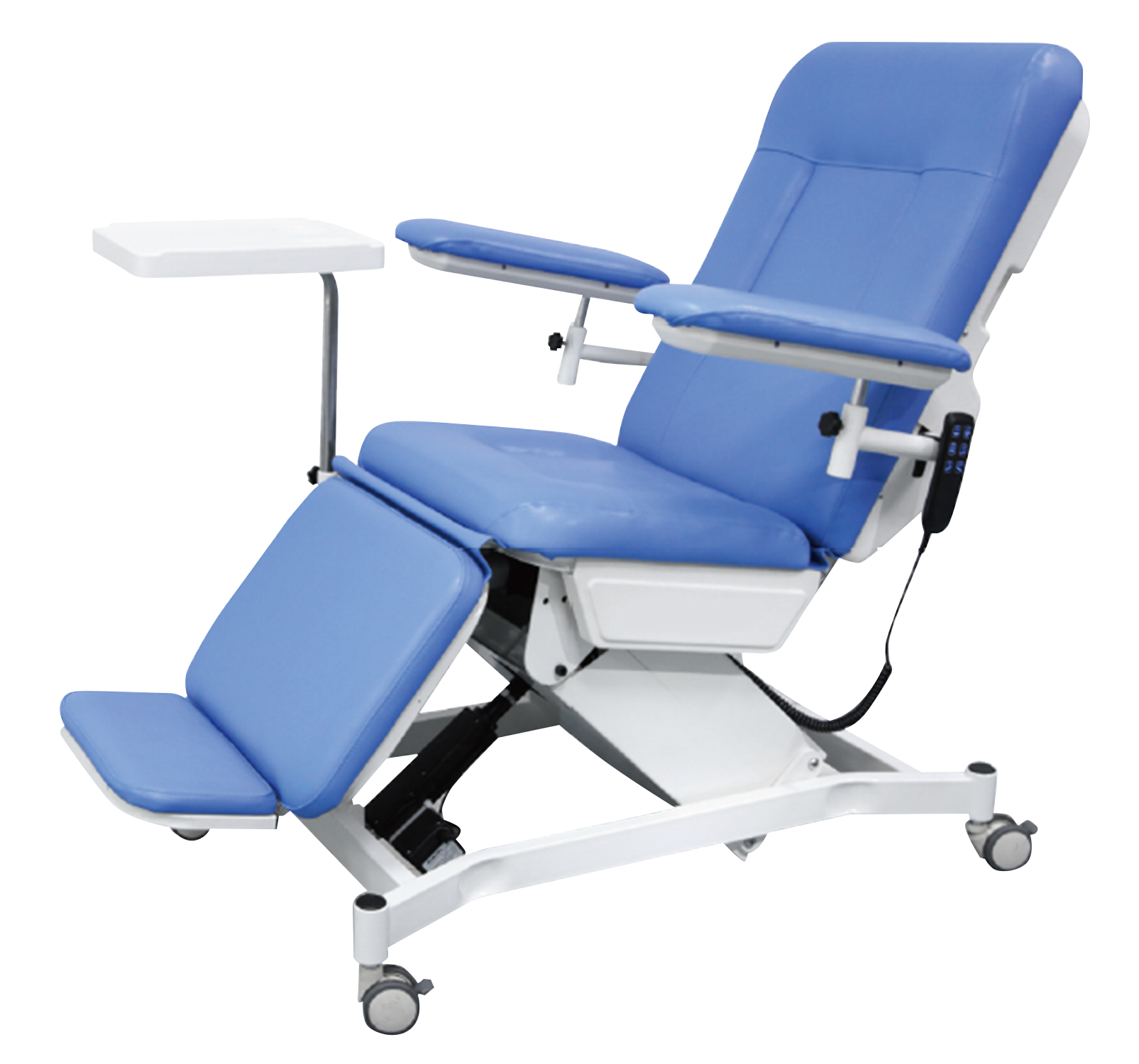

Electric Dialysis Chair KDC-A100 is a mobile three-function treatment chair cushioned with smooth and wide upholstery. Motorized motion of chair section with handset-controlled operation for various positional layouts. Rapid emergency CPR positioning allows quick and easy resuscitation care.

Specifications :

Seat Size	1800 x 580 mm
Seat Height	550 mm ~ 750 mm
Back Section Size	770 mm ~ 580 mm
Back-rest Angular Range	Up to 70°
Seat Section Size	470 mm ~ 580 mm
Leg Section Size	380 mm ~ 540 mm
Leg-rest Angular Range	20° to 75°
Foam Thickness	6 cm
Arm-rest Swivel Range	0° to 270°
Arm-rest Size	500 mm ~ 160 mm
Arm-rest Tilt	Up to 100 mm
Utility Tray	ABS tray
Construction	Steel-based structural frame
Upholstery	Leather / Supebric
Maximum Patient Load	130 Kgs
IV Pole	SS pole with 15 Kgs capacity
Wheels	3” lockable castors
Power Supply	100 V 50 Hz 240 V 60 Hz
Dimensions	1800 x 580 x 550 mm



Features :

• Adjustable foot pedal extension
• Adjustable Back-rest and Leg-rest lift
• Swivel motion donor arm
• Adjustable anti-skid utility tray

Applications :

Used in hospital blood-donation rooms, hemodialysis centers, OPD examination room for procedures like Blood donation, Dialysis, recovery after one-day surgery, IV therapy or patient examination.
