Overview

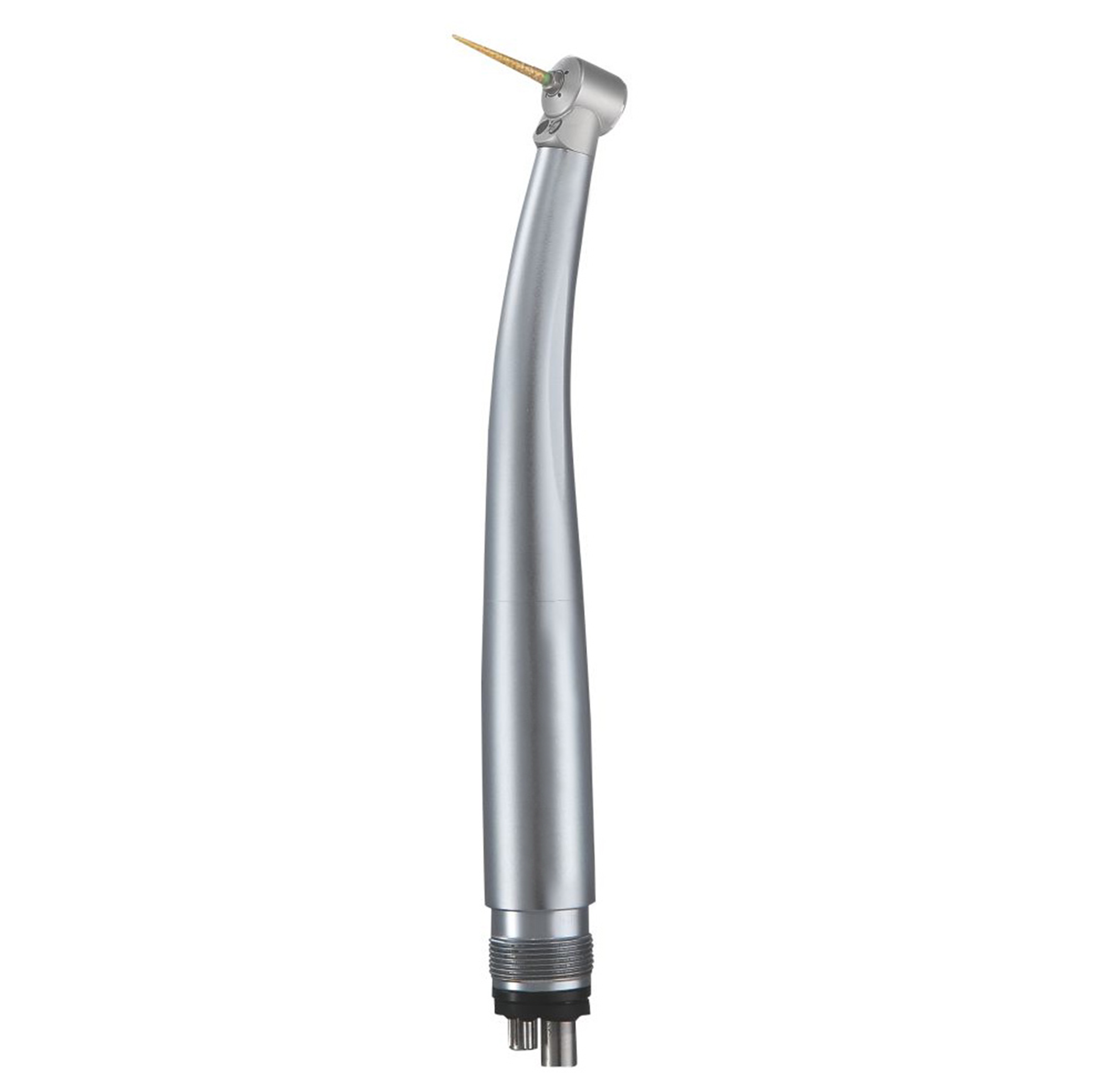

High-Speed Dental Hand piece KDH-A201 is a contra-angled air-driven dental drill instrument. High precision gears housed in miniature head design enables broader workspace. LED light illumination and single-point water spray with anti-retraction units improve scope of visibility.

Specifications :

Rotation Speed	3,80,000 rpm to 4,00,000 rpm
Head Size	8.7 x 9.5 mm
Bur Insertion	Standard Push button
Gear Ratio	1:1
Drive	Air driven
Type of Bearing	Ceramic
Air Pressure	0.25 MPa ~ 0.27 MPa (4 hole) 0.2 MPa ~ 0.22 MPa (2 hole)
LED Source Life	1000 hours
Tubing Connection	2 or 4 holes
Spray	Single-point water spray
Construction	Stainless steel exterior
Applicable Bur Size	Diameter : 1.59 mm ~ 1.6 mm Length : 21 mm ~ 23 mm
Cartridge	Collet-type
Noise	< 58 dB
Weight	Approx. 180 g



Features :

• Double optical LED
• Anti-retraction valve mechanism
• Enhanced grip control

Applications :

Used in dental clinics for preparation of tooth for various procedures primarily suitable for cavity preparation, removal of tooth structure, margin creation and finishing restorations.
