Overview

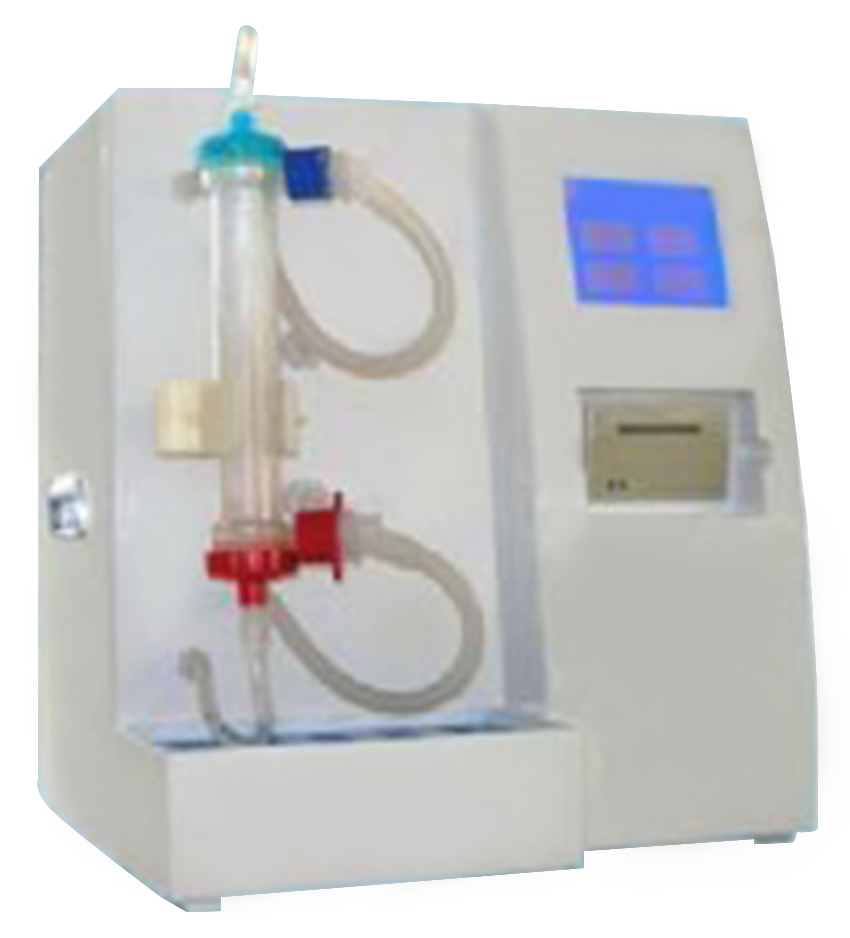

Dialyzer Reprocessing Machine KDR-A100 is an advanced dialyzer reprocessing unit equipped with touch panel control LCD screen to select various functional parameters and settings for automated reprocessing. Specialized concentration detection system delivers optimal amount of disinfectant ensuring safe disinfection process. The reprocessing system complies with several quality factors to achieve accurate ultra-filtration standards at minimal water usage.

Specifications :

Cycle time	12 minutes per cycle
Volume test range	0 mL to 150 mL ( ±3 % )
Operational Workstation	Single
Minimum Water inlet Flow	1.5 L/min
Water input temperature	10 °C to 40 °C
Water input pressure	0.15 MPa to 0.35 MPa
Power consumption	150 W
Operation temperature	5 °C to 40 °C
Storage temperature	5 °C to 40 °C
Power supply	AC 220 V ±10 %, 50/60 Hz
Dimensions	470 ×380 ×480 mm
Weight	30 Kgs



Features :

• Automated reprocessing cycle: 12 minutes per cycle
• Touch screen LCD
• Operational Workstation : Single
• Accurate TCV and blood leak test
• Safe and automatic disinfectant dilution
• Comprehensive data management system
• Data record and print function
• Effective cross-contamination control
• Troubleshoot tips and alarms
• Reduced water loss (< 8 L/dialyzer)

Applications :

Used in nephrology (AKD) departments in hospitals or Kidney dialysis centers to effectively automate reprocessing activities detect blood volume as well as inspect for dialyzer compliance with hospital infection-control measures for reuse of the dialyzer unit and provide recorded patient data for record keeping and quality control.
