Overview

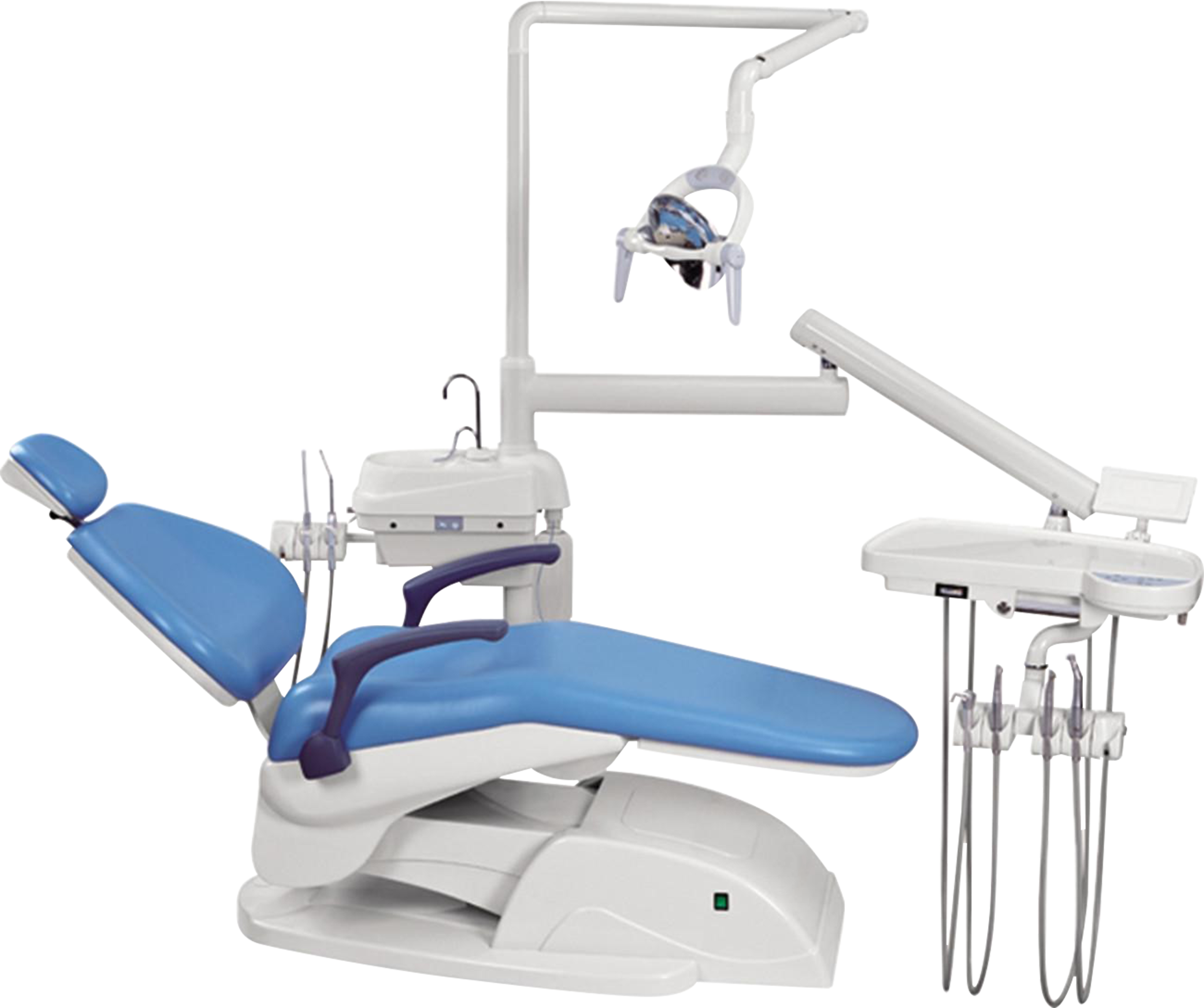

Dental Chair Unit KDU-A100 is designed with adjustable head rest and back rest seat provide comfortable environment for dentist to work in different positions. Incorporates low voltage continuous electric motor, avoiding damage to turbine and tooth cleaning instrument caused by air pressure and water.

Specifications :

Chair size	1750 × 850 × 1800 mm
DC Motor	24 V / ≤ 3.8 A
Operation Light	12 V ; 50 VA (AC) 10 V ; 50 VA
Input Power	750 VA
Water Supply Thermostat	220 V/24 VA
X-Ray Film Viewer	12 VA
Instrument Tray Capacity	1.5 Kg
Power Supply	220 V ; 50 HZ (AC)
Weight	250 Kgs



Features :

• Electric operation mode
• Stable chair movement by a set air spring
• Input control : Main and foot control panel
• Two set of saliva ejector
• Single cuspidor
• Internalized water purified system
• Air locked rotary arm system
• Dentist stool

Applications :

Used in dental clinic for dental examinations and operations.

Optional_Features :

Air control system
Built-in LED curling light
Built-in scaler
Oral camera system
Dental air compressor without oil and with air dryer
Dental hand piece
Only one side arm rest
