Overview

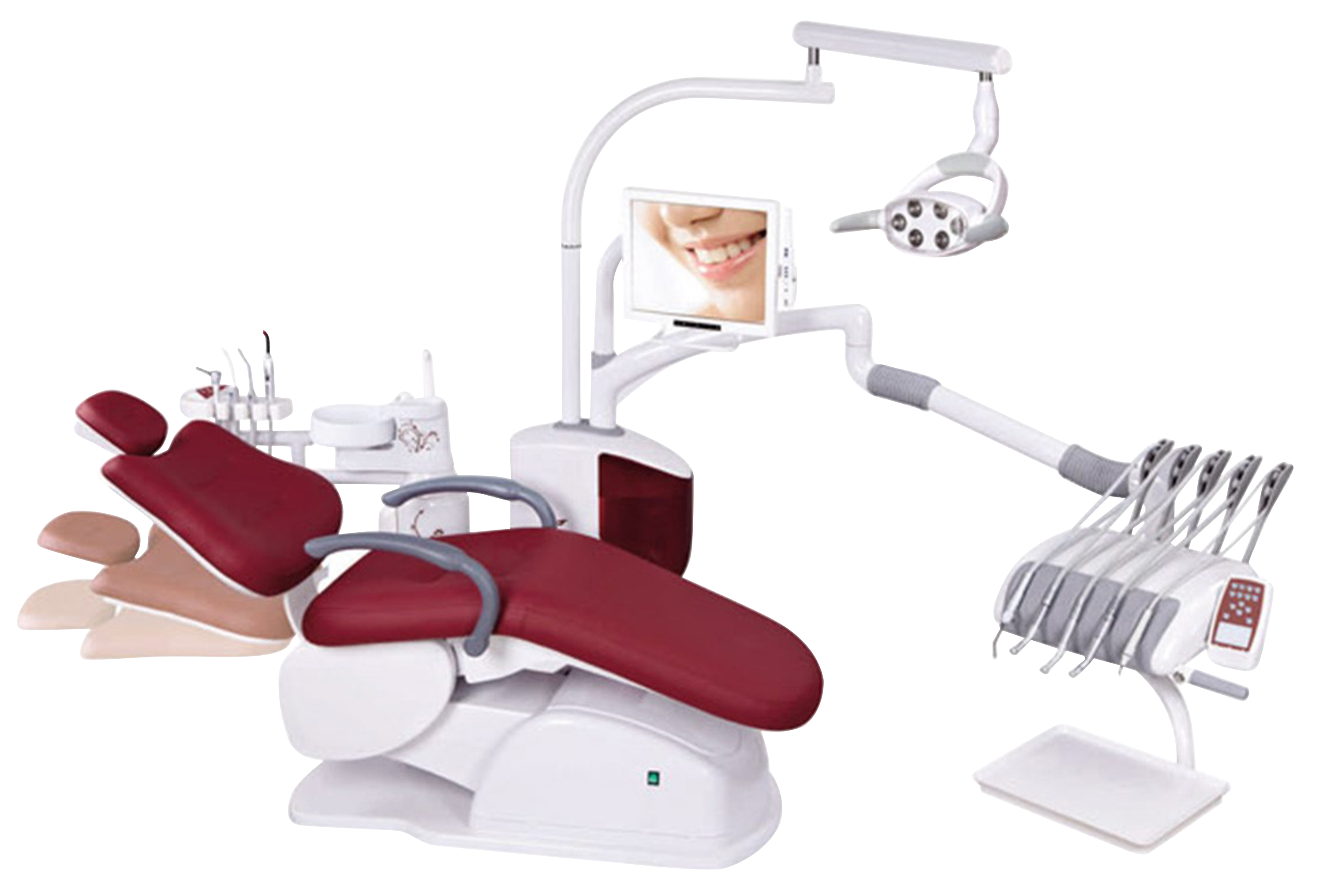

Dental Chair Unit KDU-A102 equipped with high quality rest chair with seaming leather cushion designed based on human body feature give comfort to patient. Incorporated with floor-type side box characterized by remote controller, facilitate automatic control. Features single set of LED lamp, X-ray film viewer, top mounted instrument tray, suction pump system and turntable ceramic cuspidor.

Specifications :

Chair size	3000 × 3000 × 2200 mm
DC Motor	24 V / ≤ 3.8 A
Operation Light	12 V ; 50 VA (AC) 10 V ; 50 VA
Input Power	1100 VA
Water Supply Thermostat	230 V ; 50/60 Hz (AC)
X-Ray Film Viewer	12 VA
Instrument Tray Capacity	1.5 Kg
Power Supply	230 V ; 50/60 Hz (AC)
Weight	250 Kgs



Features :

• Electric control system
• Memory program system
• Three hand piece tube
• Automated hot water supply
• Two set built-in water purifier and dentist stool
• Two piece three way syringe
• Multifunctional foot pedal

Applications :

Used in dental clinic for dental examinations and operations.

Optional_Features :

Built-in curing light and scaler
Monitor and camera
Memory program system
Suction system : eject saliva and water
Dental air compressor without oil and with air dryer
Six way syringe
Dental hand piece
Medical suction machine
