Overview

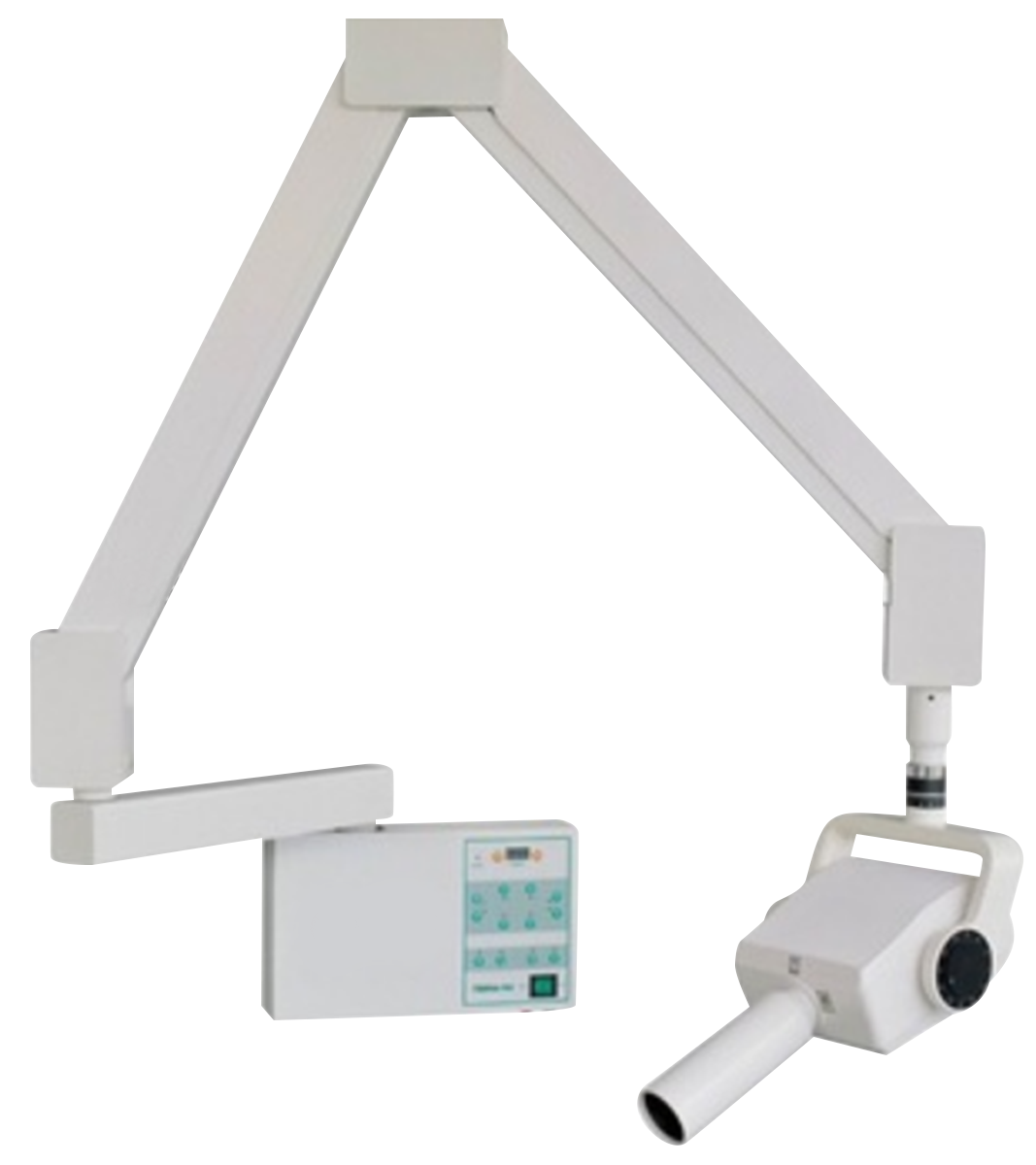

Dental X-ray KDX-A100 is an intra-oral imaging modality which uses fine focus X-ray generators and small focal spot for optimum penetration power, good radiographic contrast at minimal dosage. Digital one-touch operation and microprocessor based exposure control along with low voltage alarming and high voltage protection ensures stable, efficient and low radiation output consistently. Micro-focus technology ensures clear image and accurate diagnosis.

Specifications :

Tube Voltage	60 kV
Tube Current	8 mA
Exposure Time	0.2 s – 4 s
Tube Focus	0.8 mm
Configuration	Wall Mounted unit
Leak Radiation	One meter ≤ 0.002 mGy/h (National standard:0.25mGy/h)
Total Filtration	2.5 mm Al
Charger Input	AC : 220 V ± 10%, 50 Hz ,1 kVA
SSD (Source Skin Distance)	20 cm
Weight	35 Kgs



Features :

• Micro focus technology
• Digital control panel
• Wall mounted unit
• Accurate and quick imaging
• Trusted X-ray tube quality

Applications :

Used in dental clinics for dental X-ray imaging to reveal impacted teeth, advanced periodontal disease, sinusitis and to plan treatment dentures, braces, extractions or implants
