Overview

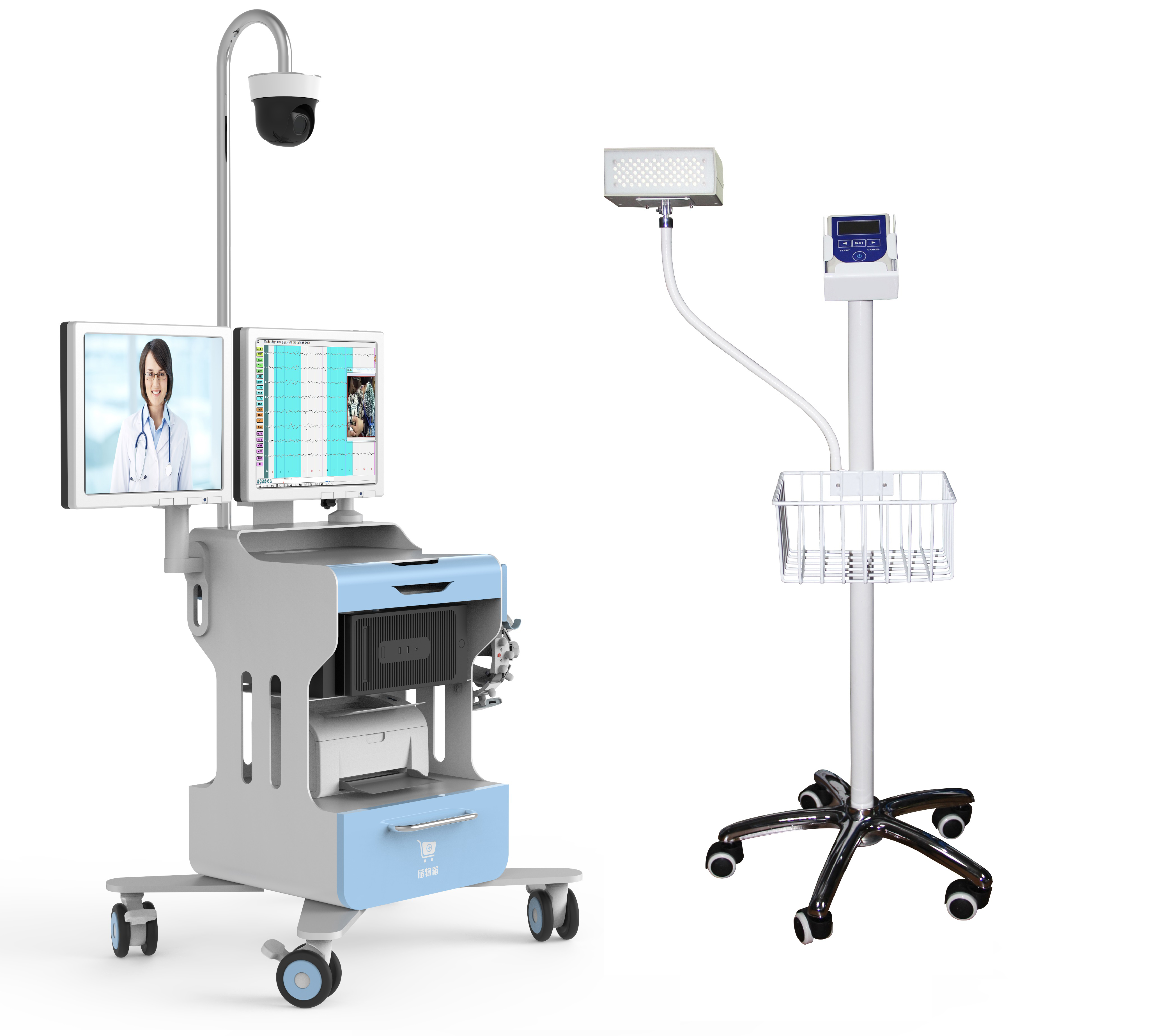

EEG Machine KEEG-A102 is a routine EEG suitable for all standard applications of routine and long term EEG configurable in various set-ups. High quality real-time EEG signal acquisition and display. Compact continuous monitoring device with USB connectivity for data transmission. Combined display of configuration chart and channel configuration source simplifies channel editing. Integrated with different evoke EEG stimulation facilities.

Specifications :

Input channel	(12/24/36/48 Monopolar EEG+12channelsBipolar EEG+12channels PSG)
Recording modes	Real-time
Sampling Rate	128, 256, 512, 1024, 2048, 4096, 8192 Hz
A/ Converter	24 bit
Electrodes	Shielded Single disc electrodes
Data format	EDF or TXT format
USB Interface	USB 2.0/ USB 1.1 (HDMI Interface)
Hours of operation	72 hours continuous operation
Calibration	Built-in impedance testing function and automatic calibration
Input impedance	≥10 MOhm
Low-pass filter	1 Hz ~ 120 Hz
High-pass filter (Time)	0.01s - 0.3s
CMRR	≥100 dB
Noise	≤0.5 uVRMS
Internal memory	Built-in Flash memory card (2GB)
Operative Temperature	±10 °C ~ +50 °C
Operative Humidity	30% ~ 80%
Power supply	(External) AC 100～240 V/ DC – 19 V (Internal) Rechargeable lithium battery(16.8v)
Dimensions	510 x 450 x 230 mm
Weight	11 Kg



Features :

• Single-shield electrodes with DIN interface
• Expandable channels for PSG recording: EOG, EMG, ECG, SPO2
• Real-time as well as long-term monitoring
• Sound, light and electricity evoking
• ERP data averaging function
• Accurate readings and printable waveforms
• Connectivity : USB
• HD video/Infra-red video recording synchronous with EEG data (optional)

Applications :

Used in sleep clinics, psychiatric wards and neurology departments to monitor seizure disorders, evaluate patient’s cognitive states, identify lesion sites and study the effect of drugs and psychological treatment.

Standard_Accessories :

Sr	Standard Accessories	Qty
1	12/24/36/48 channel Monopolar EEG electrodes	1 set
2	12 channel Bipolar ECG electrodes	1 set
3	12 channel PSG electrodes	1 set
4	Single disc electrode cable	1

Optional_Accessories :

Sr	Optional Accessories	Qty
1	Pentagonal stand	1
2	Split-type EEG electrode cap (23holes/51holes)	1
3	Photic stimulator	1
4	HD Video system	1
5	Mountable trolley	1
6	Electrode cables for split-type EEG cap	1
