Overview

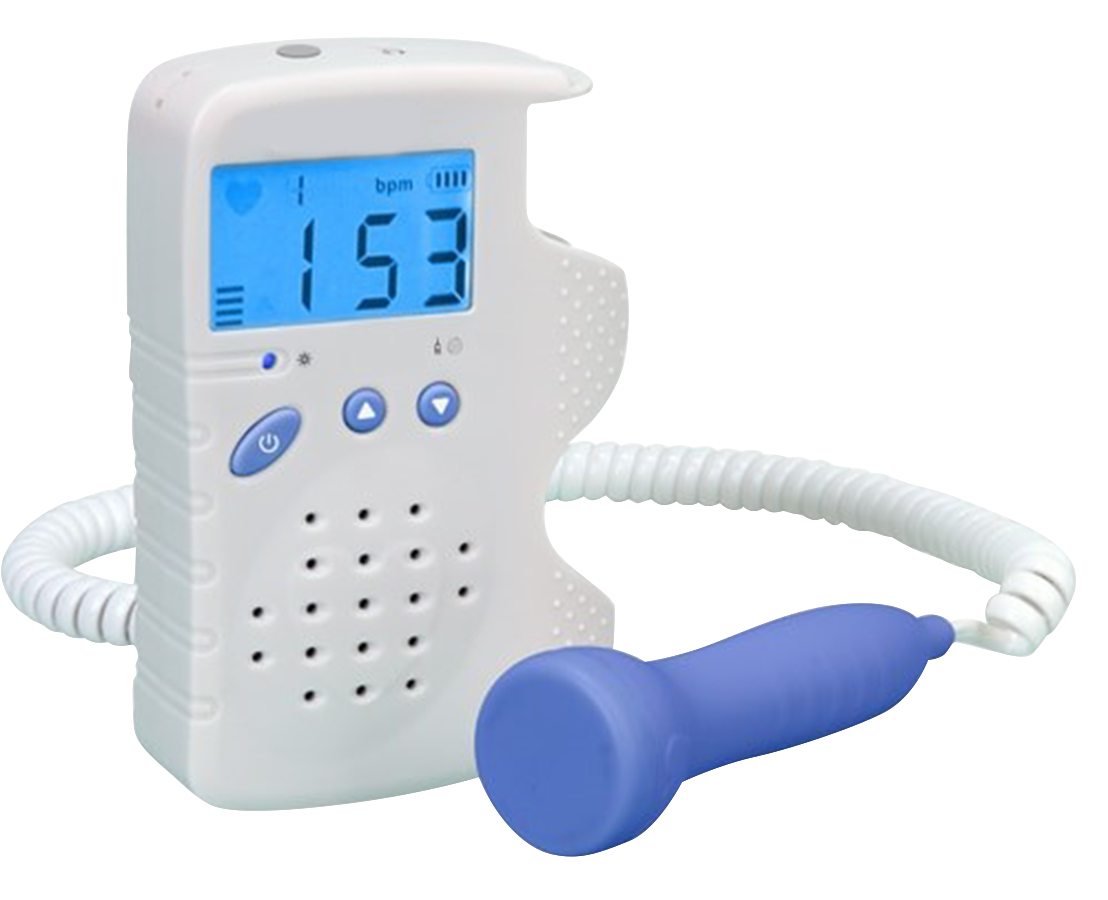

Fetal Doppler KFD-A100 is a hand held ultrasound doppler with heart-rate display and audio output. Doppler probe ensures increased sensitivity with easy-grip design. LCD display indicates fetal heart rate, volume and battery status. Built-in loudspeaker enables clear audibility of fetal heart sounds.

Specifications :

Ultrasound frequency	2 MHz
Ultrasound Intensity	<10mW/cm2
Screen	Alphanumeric LCD
Display	Digital FHR
FHR Measuring range	50 ~ 240 bpm
Battery	Option A Option B 1.5 V AA battery Ni-MH rechargeable battery
Power consumption	<1 W
FHR resolution	1 bpm
FHR accuracy	± 1 bpm
Dimension	135 × 95 × 35 mm
Weight	500 g



Features :

• High sensitivity doppler probe
  Low power consumption
  Compact battery powered operation
  Provision for earphones
• Alpha-numeric backlit LCD

Applications :

Used in gynacology clinics and obstetric department in hospitals to detect and monitor fetal heart rate for routine checkup.
