Overview

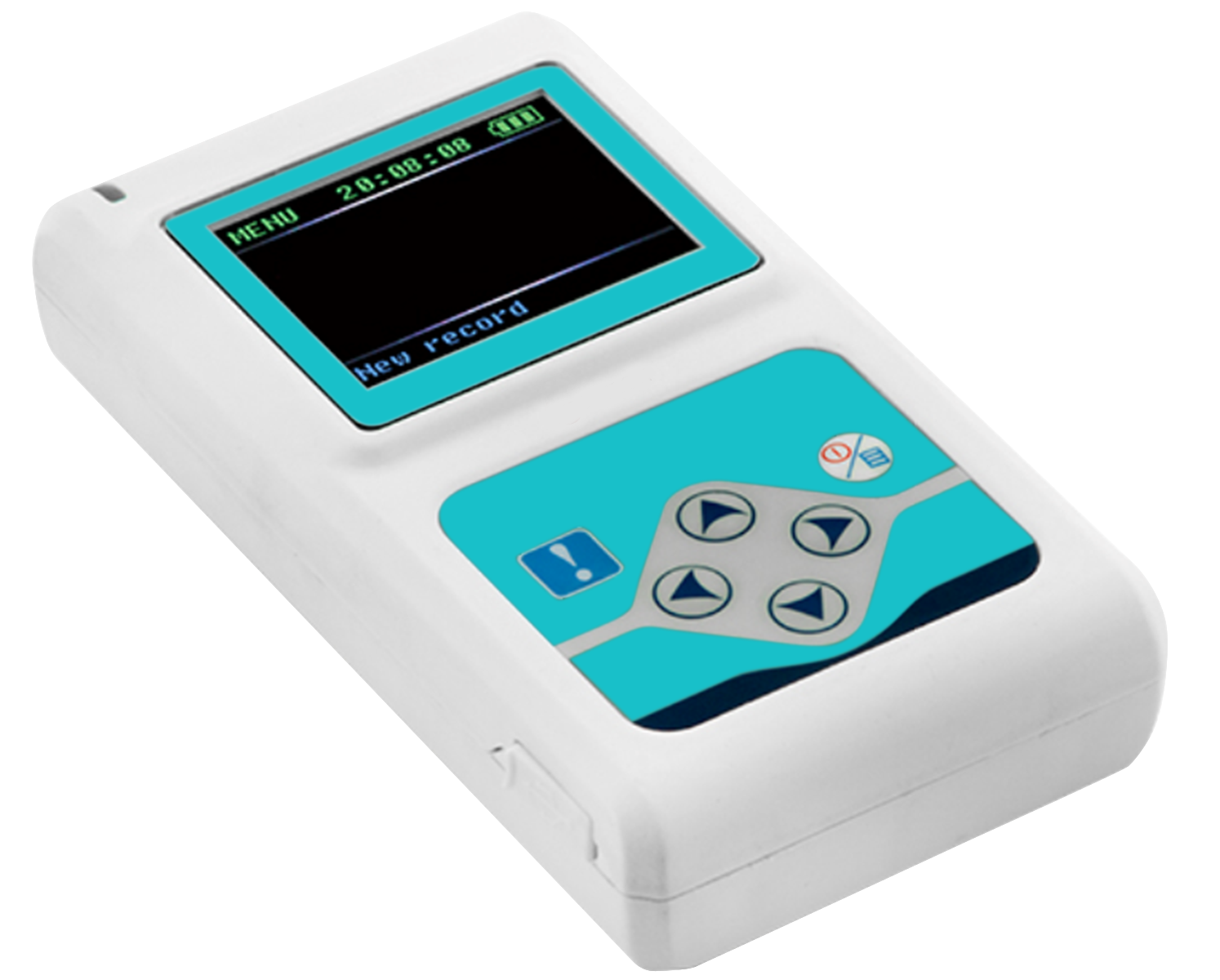

Holter Monitor KHM-A100 is a 24-hour ambulatory ECG recorder designed to record real-time ECG. System is equipped with OLED screen for waveform preview, record review and event marking. Integrated frequency filters allow anti-jamming and aseismic capability for error free waveforms. Data storage up to 2GB using TF card enables original data to be stored without compression. System performs 12-lead synchro-analysis for distortion-free QRS detection.

Specifications :

Display	OLED 160 x 128 dot matrix display
Storage	Built-in TF card storage for up to 2 GB
Standard Sensitivity	10 mm/mV ± 5%
Sensitivity Shift	≤ ± 10%
Channel Display	12 Channel
Scan Speed	25 mm/s ± 5%
Pacing Analysis	Dual chamber pacing, Atrial pacing, Ventricular pacing module Ventricular Pseudofusion and Ventricular asynchronous module
Arrhythmia Analysis	MCSSTM and TMCATM
ECG-Analysis	ST segment analysis , HRT analysis, T-Wave alternation,QTD (QT dispersion) VCG (vector cardiogram), VLP (ventricular late potential) and TVCG (time vector cardiogram) analysis
Heart-rate Analysis	Short range : 5 minutes Long range : 1 hour Continuous : 24 hours
Sampling	Sampling Accuracy : 12 Bit Rate of Sampling : 10 kHz
Batteries	2 AA batteries
Interface	USB 2.0
Scale Voltage	1mV ± 5%
Noise	≤ 30µV
CMRR	≥ 60 dB
Time Constant	≥ 3.2 s
Polarization voltage	± 300 mV (DC)
Dimension	111 x 60 x 25 mm
Weight	105 g



Features :

• 12-lead synchronous acquisition
• Fast review analysis
• Accurate and Quick report generation
• More than 10 pre-defined modules and user-defined impulse tracking for premature conduction impulses
• ECG-analysis function
• Predictive arrhythmia analysis module
• Predictive pacing analysis module
• Flexible channel selection

Applications :

Used in cardiology center to diagnose and detect symptoms of various heart disease and arrhythmias, determine a patient’s response to drug therapy, function of pacemaker and reveal trends or changes in heart function during normal routine activities.
