Overview

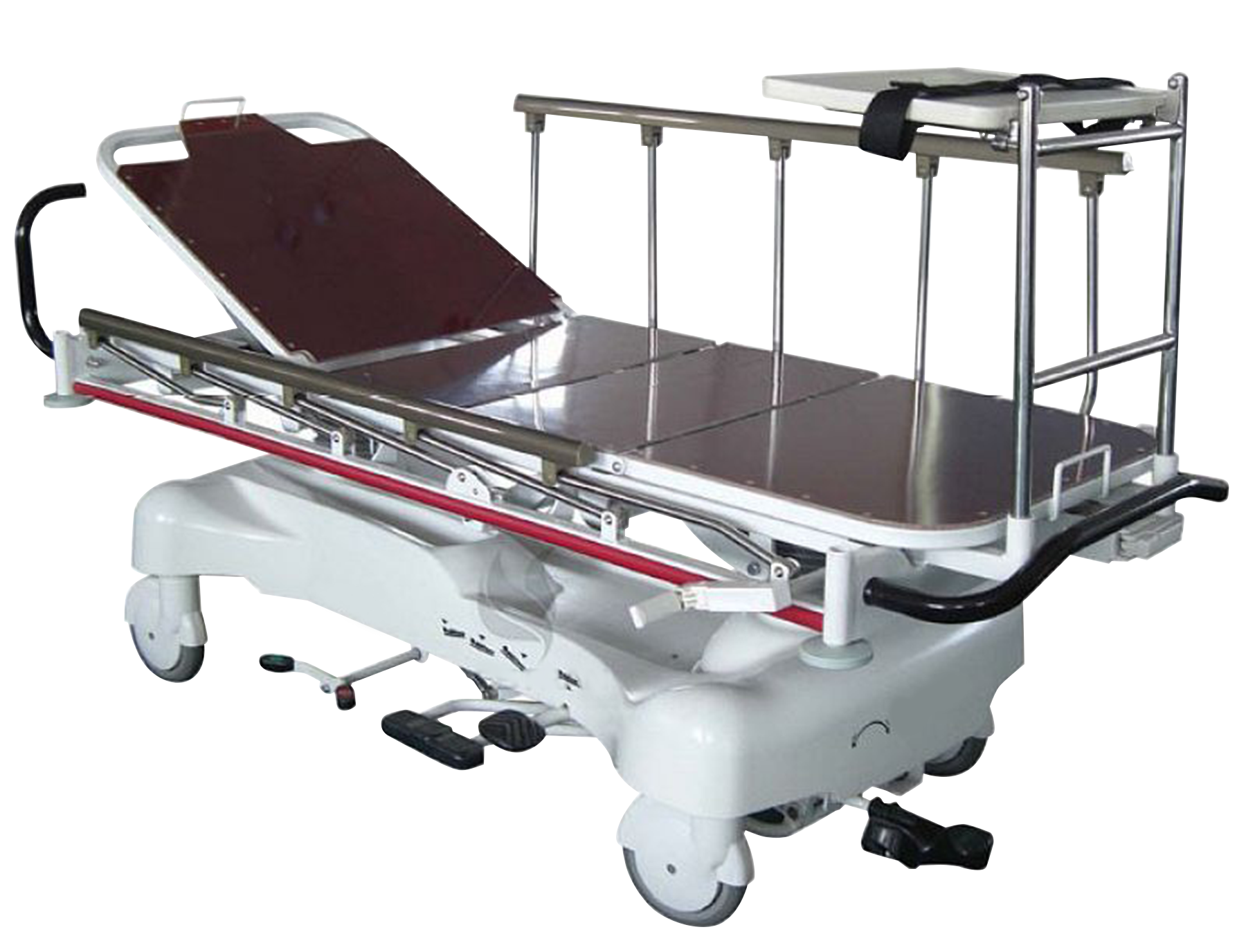

KHS-A102 is a functional stretcher with a provision of five movements namely backrest and footrest movement, height adjustment, trendelenburg and anti-trendelenburg position control. Equipped with 2 separate hydraulic pumps for lifting operation and Hydraulic control panel for monitoring and controlling operation. Entire bed board features x-ray cassette for imaging with a monitor tray at foot end.

Specifications :

Trendelenburg	12 °
Variable height	630 to 950 mm
Anti-trendelenburg	12 °
Weight capacity	250 Kgs
Backrest upward angle	75 °
Footrest upward angle	45 °
Castor diameter	200 mm
Mattress thickness	60 mm
Dimensions	2100 mm × 850 mm × 630 - 950 mm



Features :

• Two separate sets of hydraulic pumps
• Spring controlled back section, manually controlled foot rest
• Aluminum alloy handrails provide safety protection
• CPR handle at head side for quickly lowering the head section
• Entire bed board features x-ray cassette for imaging
• Cold-rolled steel tube frames
• Steel, electrostatic powder coated mattress surface
• Rise and fall fifth guide wheels ensure shock proof
• PU cover water proof mattress with straps prevent dust mites and allergies
• IV pole, IV pole holders
• ABS base cover with oxygen cylinder holder
• Central locking function

Applications :

Used in hospitals and clinics to move the patient’s and to lift the patient with spinal cord injury.
