Overview

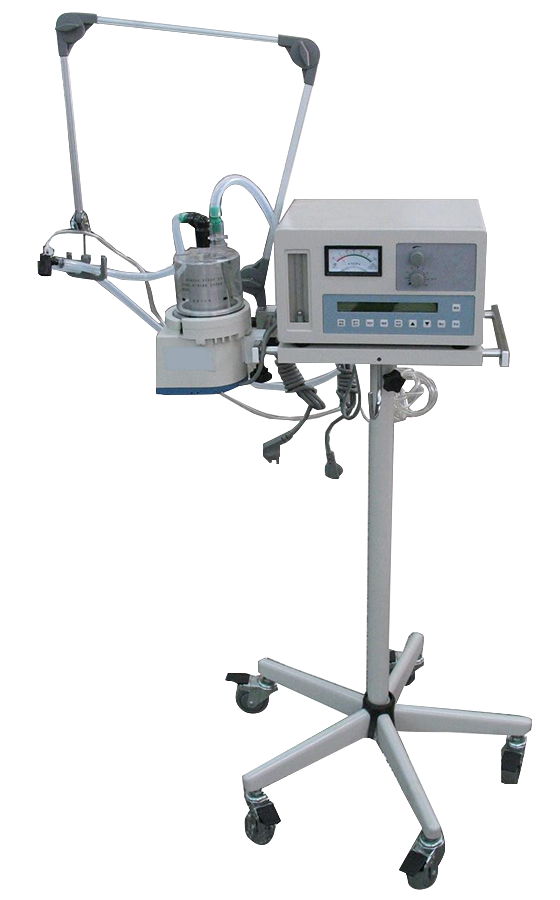

Intensive Care Ventilator KVI- A102 is designed to meet the needs of clinical respiratory management for Infants with respiratory disorder. It has a provision to work with innovative ventilation modes like constant flow, pressure limit and time cycle ventilation.

Specifications :

Tidal Volume	10 ml ~ 300 ml
Standard Ventilation Mode	CMV, IMV, CPAP, Manual
Application	Pediatric
Inspiratory Flow	3 L/min ~ 20 L/min
Respiration rate	1 bpm ~120 bpm
I:E Ratio	1:1 to 1:3
Oxygen Concentration	21 % ~ 100 %
Pressure trigger Range	-1.0 to 0 kPa
Flow Trigger Range	0 to 10 L
PEEP Type	Pneumatic Driven, Electronic Control
Inspiratory Pause Time	0.2 s ~ 3.0 s
Maximum Security Pressure	≤ 10 kPa
PEEP Range	0 kPa ~2.0 kPa
Max Ventilation Volume	> 5 L/min
Input Pressure	0.15 MPa ~ 0.3 Mpa
Inspiratory Pressure	1 kPa ~ 9 kPa



Features :

• Innovative ventilation mode
• Safe and Reliable
• Compact and Reasonable

Applications :

Used in operating rooms, NICU, and other departments for pulmonary life-support during acute lung injury or respiratory distress which result in inadequate oxygenation or ventilation inability to protect the airway fluids.
