Overview

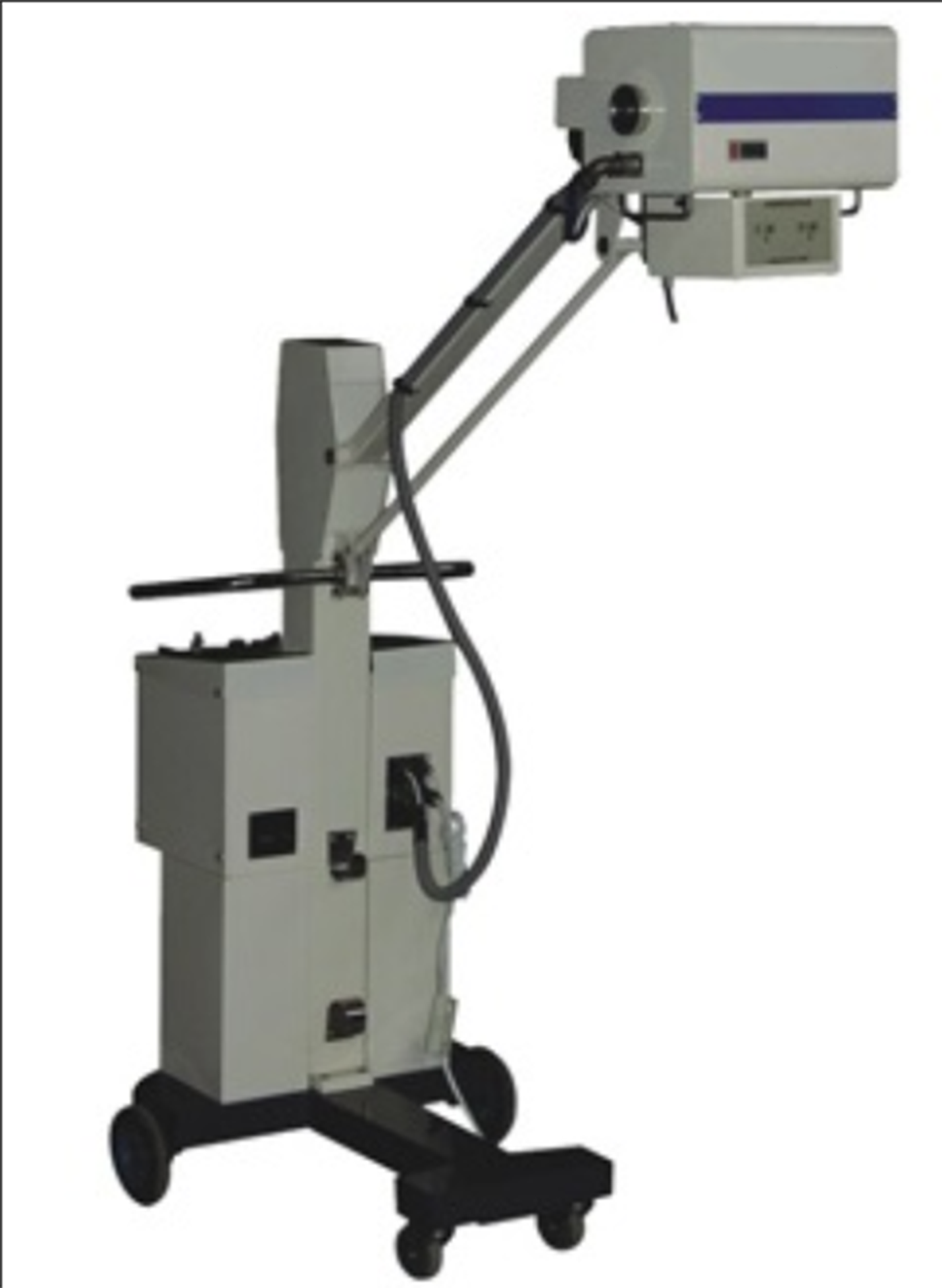

Mobile X-ray machine KMX-A100 is an advanced x-ray imaging modality designed for easy mobility and handling during intra-hospital transport. Regulated voltage control ensures powerful and brief exposure yet stabilized x-ray output consistently. Focused and precise x-ray exposure with adjustable collimators reduces scatter enhancing image quality and contrast. Tube head cantilever allows easy source orientation suitable for different patient positions.

Specifications :

Focal Distance	430 × 430 mm
Source Head Range	550 mm - 1820 mm
Exposure Time	0.08 s - 6.32 s
Tube Focus	2.6 x 2.6 mm
Collimator Film (max)	1000 mm
Power Rating	5 kVA
Internal Resistance	≤1 Ω
Current	Max. 15 A
Power Supply	Voltage : 180 V - 240 V Frequency : 50Hz
Dimensions	1350 × 750 × 1500 mm
Weight	135 Kgs



Features :

• Standard frequency X-ray generator
• High imaging quality
• Stabilized and short time exposure
• Focused x-ray output
• Easy and fast positioning
• Simplistic operational console

Applications :

Used throughout the hospital from in-patient, to NICU, operating room, and emergency room as well as polyclinics to perform projection radiography readily on bedbound or critical patients for convenience.
