Overview

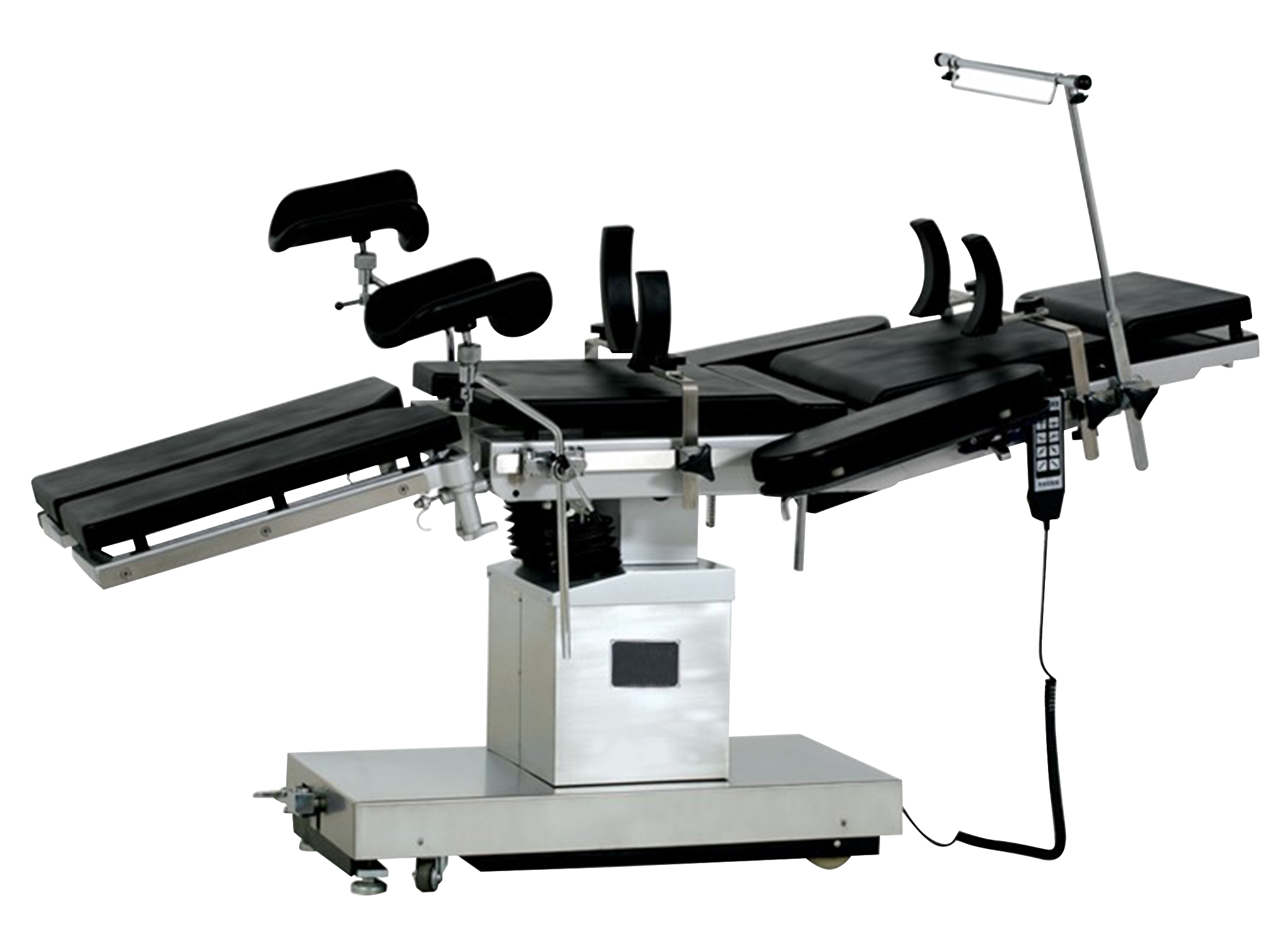

Operating Table KOT-A100 features high density sponge in one piece with no seam, mattress is wrapped with artificial leather. It is incorporated with high quality motor without noise formation and foot treadle brake device for easy movement of operating table. Separate section for legs and it uses spring gas control for counterbalance (support)

Specifications :

Length	2000 ± 50 mm
Width	500 ± 20 mm
Adjustable height (Min to Max)	( 750 to 1000 ) ±50 mm
Trendelenburg	≥ 25 °
Reverse Trendelenburg	≥ 35 °
Lateral tilt	≥ 15 °
Head section folds upward	≥ 40 °
Head section folds downward	≥ 90 °
Leg section folds downward	≥ 90 °
Leg section folds outward	≥ 90 °
Back section fold upward	≥ 45 °
Back section fold downward	≥ 20 °
Waist lifting	≥ 100 mm
Power supply	220 V (AC) ± 10 % ; 50 Hz
Input power	300 VA



Features :

• Electrically controlled operation
• Adjustable height
• Trendelenburg and lateral tilt
• Base seat and upright column covers made up of stainless steel
• Panel control and remote control
• Head and leg section folding
• Back section folding
• Long life-span motor

Applications :

Used in hospitals, operating room to carry out surgeries on patients.
