Overview

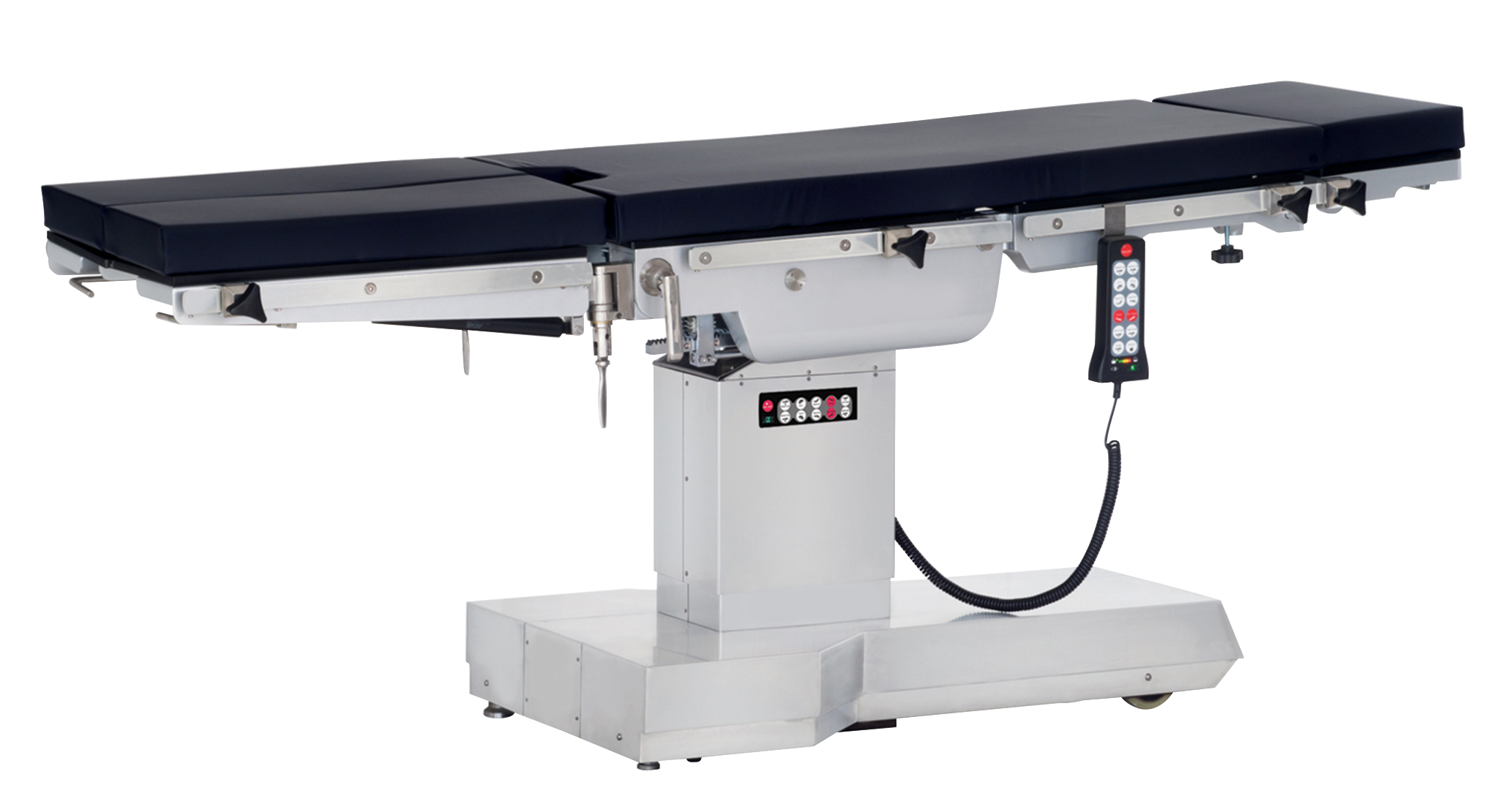

KOT-A400 is an electro-hydraulic operating table features sliding table top allow the doctor to perform different operations easily. High quality carbon plastic plate on table surface allow easy X-ray examination. Incorporate high density sponge in one piece with no seam, mattress is wrapped with artificial leather.

Specifications :

Length	2050 ± 20 mm
Width	520 ± 20 mm
Adjustable height (Min to Max)	(730 to 1120) ± 20 mm
Loading capacity	350 kgs
Trendelenburg	30 °
Reverse Trendelenburg	30 °
Lateral tilt	20 °
Head section folds upward	40 °
Head section folds downward	90 °
Leg of the board split	180 °
Leg section folds downward	90 °
Leg section folds upward	20 °
Waist board lifting	(0 to 100) ± 10 mm
Back section upward	80 °
Back section downward	50 °
Horizontal and longitudinal movement	320 mm



Features :

• Movable operating table
• Self-locking system prevent false triggering
• High quality stainless steel fabricated table support
• Stainless steel Base plate, column shield and rails made up
• Simultaneous AC and DC power usage
• Electric brake system allow easy shifting
• Auto restoration function

Applications :

Used in hospitals, operating room to carry out surgeries on patients.
