Overview

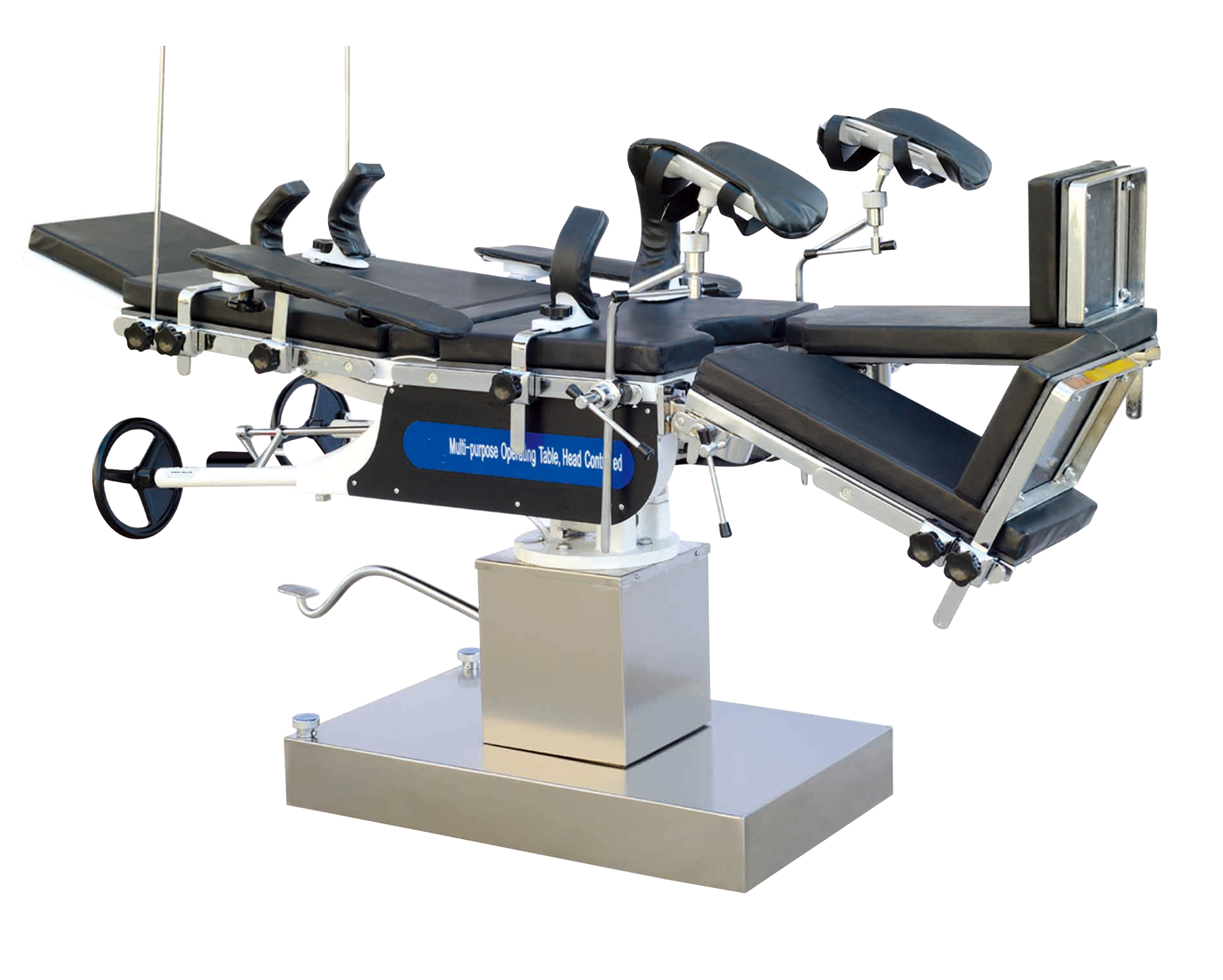

KOT-B100 is multipurpose operating table designed such that all movements are manipulated from head. It provide comfort positions so that doctors can perform various surgeries and incorporates detachable foot section. Trendelenburg positions and left or right tilt are regulated by one single hand wheel. Oil pump controls the ascending and descending movement of the table.

Specifications :

Length	2040 mm
Width	480 mm
Adjustable height (Min to Max)	800 to 1040 mm
Trendelenburg	≥ 30 °
Reverse Trendelenburg	≥ 50 °
Lateral tilt	≥ 20 °
Head section folds upward	≥ 45 °
Head section folds downward	≥ 45 °
Leg section folds downward	≥ 90 °
Leg section folds outward	≥ 90 °
Back section upward	≥ 80 °
Back section downward	≥ 8 °
Kidney section elevation	≥ 120 mm



Features :

• Head control operating table
• Adjustable height
• Trendelenburg and lateral tilt
• Free height adjustment within 240 mm
• Allows 90° fold of foot section from leg section
• Hand wheel regulate back section and leg section movement
• Crank handle controls kidney bridge
• Leg section rotated by crank handle

Applications :

Used in hospitals, operating room to carry out surgeries on patients.
