Overview

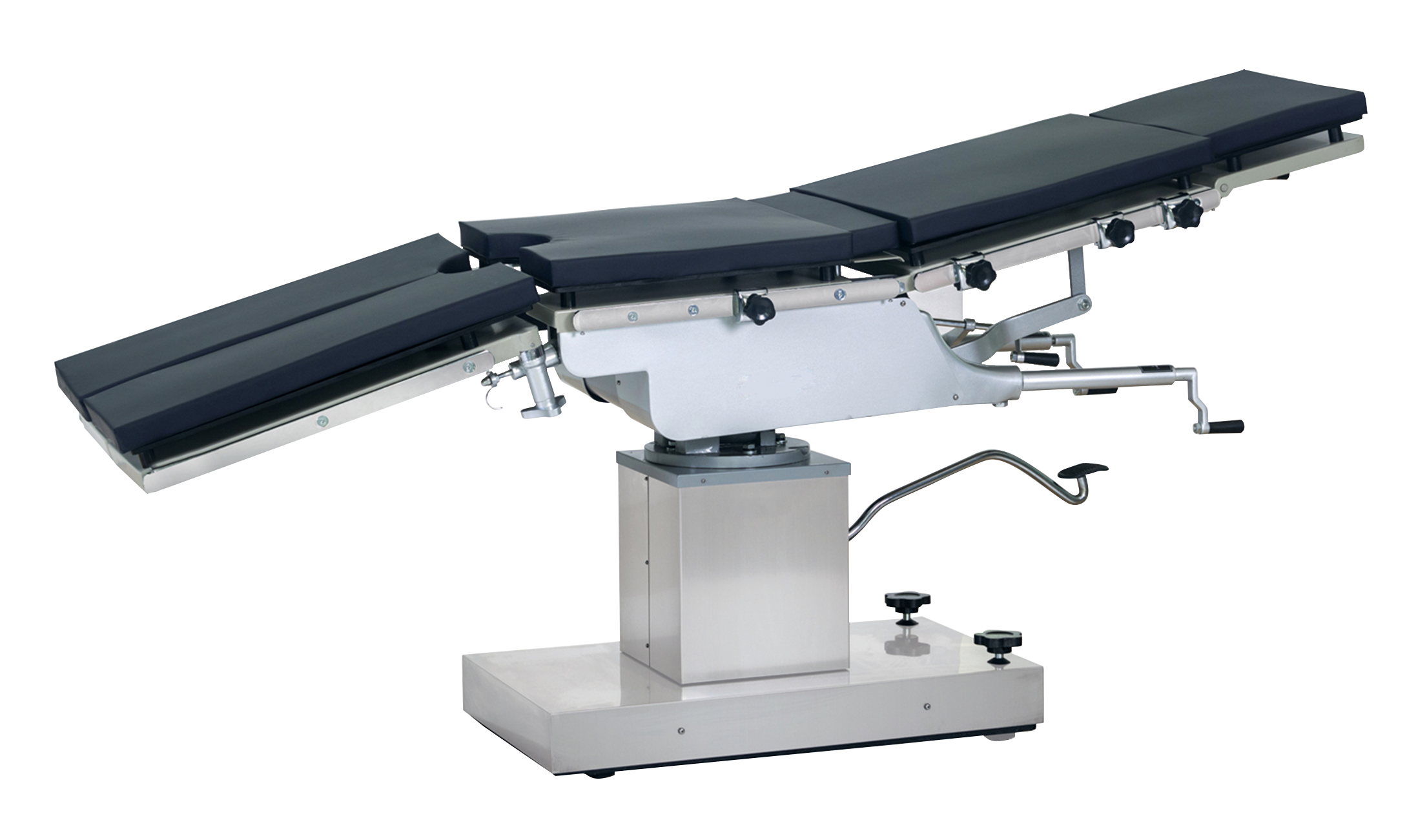

KOT-B101 is multipurpose operating table designed such that all movements are manipulated from head. It provide comfort positions so that doctors can perform various surgeries. Trendelenburg positions and left or right tilt are regulated by one single hand wheel. Oil pump controls the ascending and descending movement of the table.

Specifications :

Length	2050 ± 50 mm
Width	480 ± 50 mm
Adjustable height (Min to Max)	(750 to 950 ) ± 50 mm
Trendelenburg	≥ 20 °
Reverse Trendelenburg	≥ 20 °
Lateral tilt	≥ 20 °
Head section folds upward	≥ 30 °
Head section folds downward	≥ 90 °
Leg section folds downward	≥ 90 °
Leg section folds outward	180 °
Back section upward	≥ 75 °
Back section downward	≥ 5 °
Kidney section elevation	100 mm



Features :

• Head control operating table
• Adjustable height
• Trendelenburg and lateral tilt
• Hand wheel regulate back section and leg section movement
• Crank handle controls kidney bridge
• Leg section rotated by crank handle

Applications :

Used in hospitals, operating room to carry out surgeries on patients.
