Overview

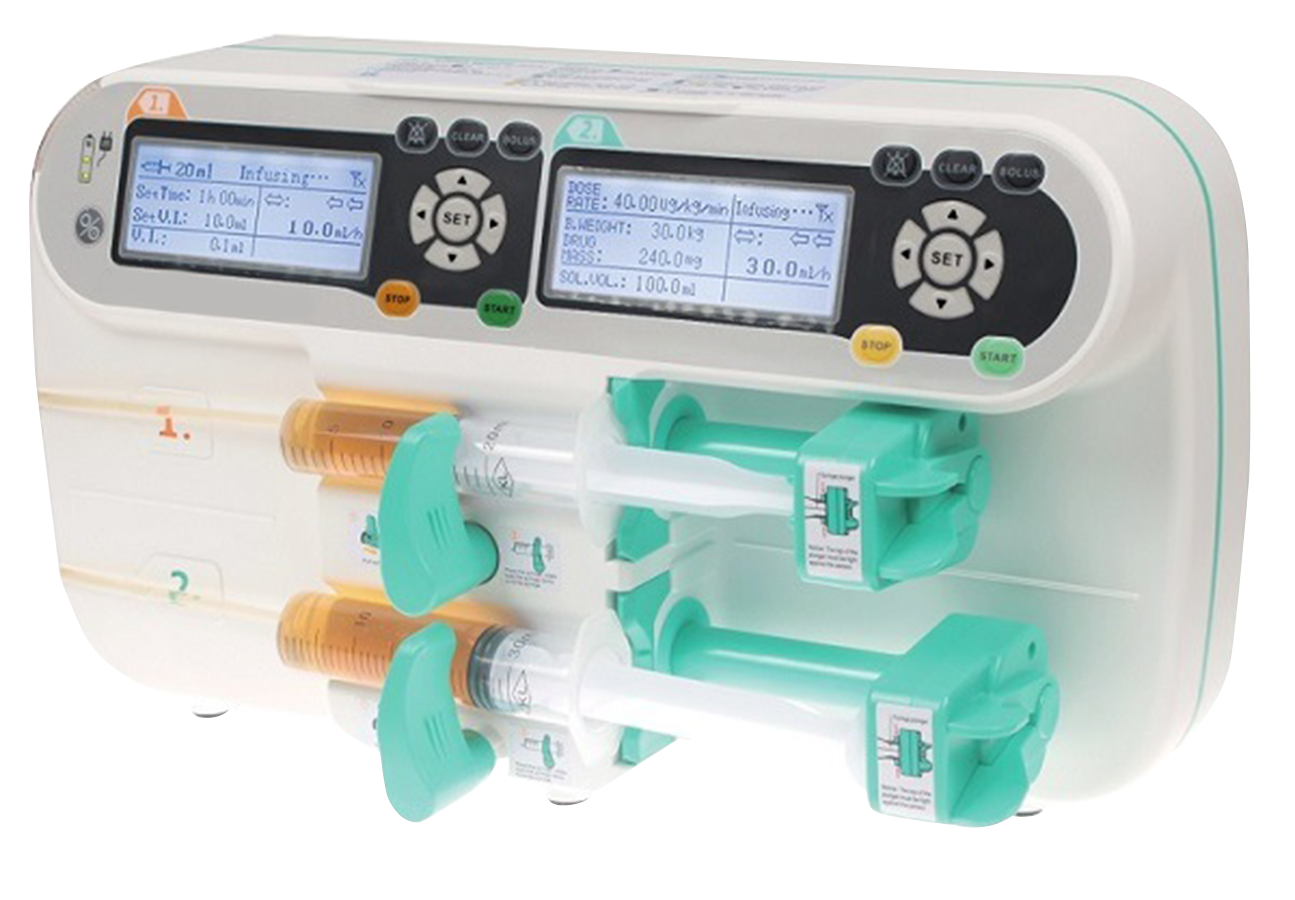

Syringe pump KSP–B100 is a dual-channel light–weight, infusion device designed for low volume infusion. Equipped with separate LCD screen to display independent flow parameters. Inbuilt software system accurately delivers infusion rate and monitors infusion therapy. Memory log system stores last setting of infusion parameters for fast infusion.

Specifications :

Channel	Dual channel infusion
Volume (VTBI)	0.1 ml – 1999.9 ml
Injection Compliance	Adaptable for 10 syringe sizes
Accuracy	≤ ± 3 %
KVO Rate	0.1 ml/h – 5 ml/h (steps : 0.1 ml/h)
Occlusion System	3 selectable occlusion levels
Infusion Rate	0.1 ml/h ~ 1600 ml/h, increment 0.1ml/h
Syringe Size	Channel 01 : 5 ml / 10 ml / 20ml / 30ml / 50ml Channel 02 : 6 ml / 12 ml / 25 ml / 35 ml / 60 ml
Bolus	Syringe 50 ml: 1600 ml/h Syringe 30 ml: 900 ml/h Syringe 20 ml: 600 ml/h Syringe 10 ml: 400 ml/h Syringe 5 ml: 200 ml/h
Occlusion Alarm Threshold	High: 110 kPa ± 20 kPa (825 mmHg ± 150 mmHg) Medium: 80 kPa ± 30 kPa (600 mmHg ± 225 mmHg) Low: 60 kPa ± 20 kPa (450 mmHg ± 150 mmHg)
Display	4.3” color segment LCD screen
Environmental conditions : Operation	Ambient Temperature: 5 °C to 40 °C Relative Humidity: 20 % to 90 % Atmospheric Pressure: 86 kPa to 106 kPa
Environmental conditions : Storage	Ambient Temperature: –30 °C to 55 °C Relative Humidity: ≤  95% Atmospheric Pressure: 50 kPa – 106 kPa
Alarm	Occlusion, nearly finish, finish, standby (no operation), low battery, battery exhausted
Power Supply	100 V ~ 240 V, 50 Hz / 60 Hz
Power Consumption	≤ 25 VA
Safety	Class I Type CF
Dimensions	354 × 132 × 199 mm
Weight	2.8 kg



Features :

• Multi injection modes – Volume/Time/Body
• Adjustable speed, time, volume and dosage
• Audio–visual alarms with repeat alarm function
• Large data storage

Applications :

Used in general ward, ICU in hospital to gradually administer intra-venous fluid drug dosage at a predetermined rate through syringe for consistent and effective infusion therapy.
