Overview

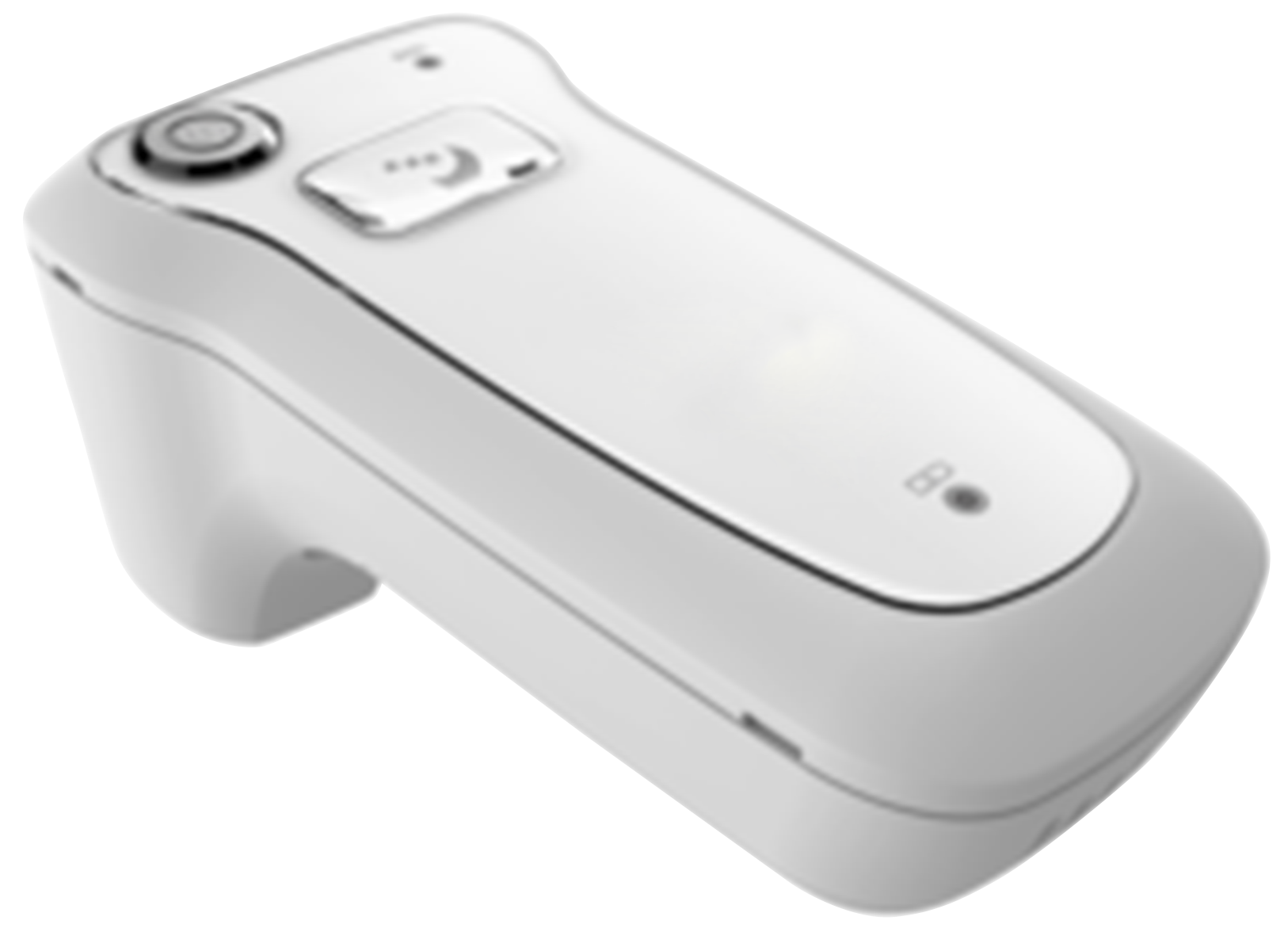

Vein Illuminator KVI-A201 is a handheld vein finder equipped with two imaging modules, selectable according to patient‘s skin tone for improved peripheral vein imaging. Medical cold light ensures safer prolonged usage. Adjustable image clarity enables detailed vascular structure. Handy and robust design.

Specifications :

Optical Technology	Infrared Projection
Luminosity Range	300 lux ~ 1000 lux
Optimal Temperature	0℃ ~ 40℃
Optimal Humidity	≤ 80%
Optimal Pressure	700 hPa ~ 1060 hPa
Dimension	7.5” x 1.4” x 1.4”
Weight	2 Kgs



Features :

• Cold light projection technology
• Selectable imaging modes (Blue-White/Red-Green)
• Light, handy and easy-grip device
• Fine vascular accuracy and clarity
• Adjustable image clarity and brightness
• Battery low and charging indicator

Applications :

Used in diagnostic clinics, hospital wards, rehabilitation and blood transfusion centers to identify, assess and view patient’s vasculature for successful venipuncture in single attempt, reduce patient discomfort and prevent complications of IV therapy.
